1.描述Description：
直臂伸縮式起重機包括一底座，其底座通過一個旋轉系統的塔體相連，旋轉系統與那個被設置在船舶甲板下的動力裝置相連。

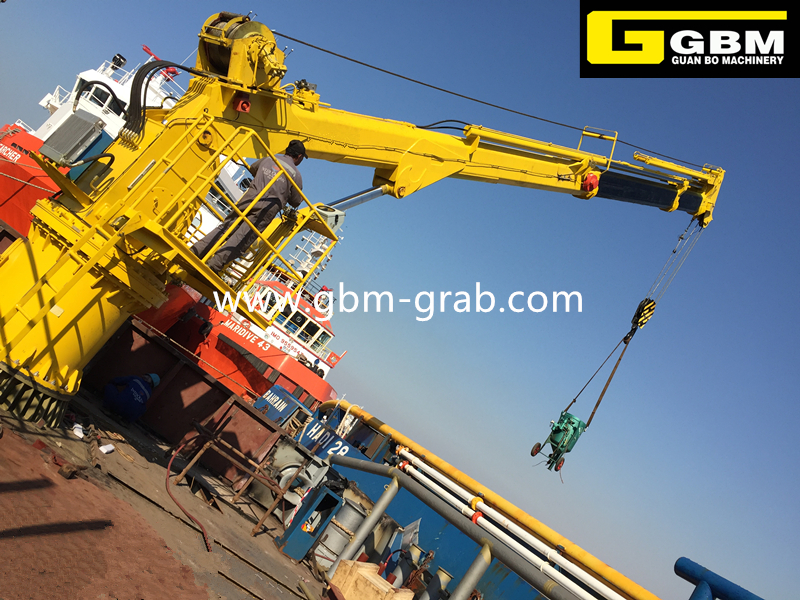

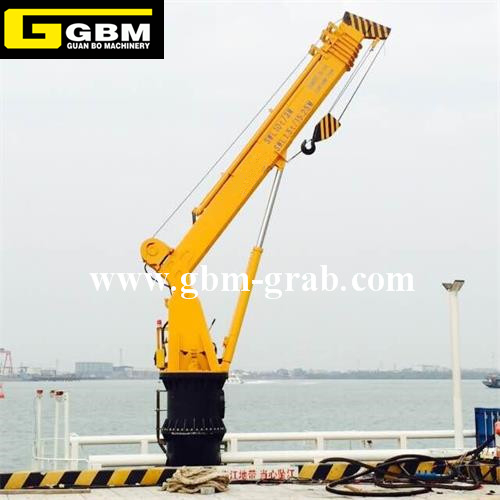

The marine telescopic crane comprises a base, which the base is connected with a tower body through a rotating system; the rotating system is connected with a power device which is arranged under a ship deck.
2.應用范圍Typical Applications：
服務起重機，供應和貨物裝卸起重機，捕魚和養魚起重機
Service cranes, Provision and cargo handling cranes, Fishing and fish farming cranes
3.特性和選項Features & Options:
|
特征Features |
可選項Optional |
|
過載保護裝置Overload protection device |
遙控Remote control |
|
長壽命軸承和零部件Long time bearing and components |
操作平臺Standing platform |
|
電壓低保護功能Voltage lower protection function |
操作室Operator’s cabin |
|
緊急停車系統Emergency stop system |
絞車Winch |
|
起升高度限位裝置Lifting height limit device |
|
|
三個或更多功能同時操作Simultaneous operation of three or more functions |
|
|
高/低溫作業High/ Low temperature operations |
|
4.產品系列Product Range
可訂購起重機的起重能力范圍從0.5噸到150噸的范圍內的產品。
The range of crane lifting capacities range from 0.5 tons up to 150 tons.
5. 主要技術參數Main Technical Parameters
|
起重量SWL |
[email protected], 3t@40m |
|
|
工作幅度Working range |
最大Max.40m/最小Min.6.5m |
|
|
起升高度Hoisting height |
30m |
|
|
機構工作速度 Working speed of Mechanism |
起升機構Lifting mechanism |
0~15m/min |
|
變幅機構Luffing mechanism |
~120s |
|
|
回轉機構Rotary mechanism |
0.5r/min |
|
|
運行機構Running mechanism |
2.7~27m/min |
|
|
橫傾/縱傾Heel/Trim |
≤5°/ ≤2° |
|
|
設計溫度Desinge Temp. |
-20°~+40° |
|
